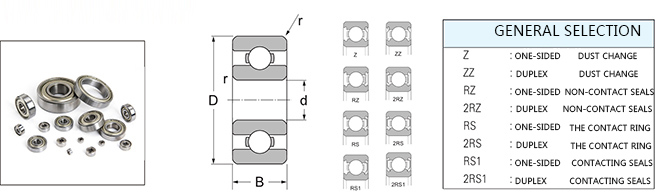

.jpg)
|
Bearing Type |
Overall dimensions（mm） |
rated load（N）
|
weight Kg |
||||
|
d mm |
D mm |
width B mm |
chamfering r mm |
Dynamic load Cr |
Static load Cor |
||
|
1601
|
4.762
|
17.462
|
7.938
|
0.3
|
1790
|
730
|
0.0070
|
|
1602
|
6.35
|
17.4652
|
7.938
|
0.3
|
1790
|
730
|
0.0065
|
|
1603
|
7.938
|
22.225
|
8.731
|
0.3
|
3290
|
1360
|
0.0120
|
|
1604
|
9.525
|
22.225
|
8.731
|
0.4
|
3330
|
1410
|
0.0105
|
|
1605
|
7.938
|
23.019
|
7.938
|
0.3
|
3330
|
1410
|
0.0160
|
|
1606
|
9.525
|
23.019
|
7.938
|
0.4
|
3330
|
1410
|
0.0150
|
|
1607
|
11.112
|
23.019
|
7.938
|
0.4
|
2690
|
1270
|
0.0300
|
|
1614
|
9.525
|
28.575
|
9.525
|
0.6
|
5110
|
2390
|
0.0000
|
|
1615
|
11.112
|
23.019
|
9.525
|
0.6
|
5110
|
2390
|
0.0280
|
|
1616
|
12.7
|
28.575
|
9.525
|
0.6
|
5110
|
2390
|
0.0260
|
|
1620
|
11.12
|
34.925
|
11.112
|
0.6
|
7450
|
3700
|
0.0500
|
|
1621
|
12.7
|
34.925
|
11.112
|
0.6
|
7450
|
3700
|
0.0480
|
|
1622
|
14.288
|
34.925
|
11.112
|
0.6
|
7450
|
3700
|
0.0460
|
|
1623
|
15.875
|
34.925
|
11.112
|
0.6
|
7450
|
3700
|
0.0410
|
|
1628
|
15.875
|
41.275
|
12.7
|
0.6
|
9390
|
5020
|
0.0720
|
|
1630
|
19.05
|
41.275
|
0.0690
|
||||
|
1633
|
15.875
|
44.45
|
0.0920
|
||||
|
1635
|
19.05
|
44.45
|
0.0900
|
||||
|
1638
|
19.05
|
50.8
|
14.288
|
0.9
|
10060
|
5860
|
0.1450
|
|
1640
|
22.225
|
50.8
|
14.288
|
0.9
|
10060
|
5860
|
0.1330
|
|
1641
|
25.4
|
50.8
|
14.288
|
0.9
|
10060
|
5860
|
0.1210
|
|
1652
|
28.575
|
63.5
|
15.875
|
0.9
|
19460
|
11310
|
0.2110
|
|
1654
|
31.75
|
63.5
|
15.875
|
0.9
|
19460
|
11310
|
0.1930
|
|
1657
|
31.75
|
65.087
|
17.462
|
0.9
|
19460
|
11310
|
0.2320
|
|
1658
|
33.337
|
65.087
|
17.462
|
0.9
|
19460
|
11310
|
0.2100
|
